Arc White

Medium Ash Gray, Cloth Seat Trim

OCEAN FREIGHT SURCHARGE

AXLE, 4.30 RATIO

PREFERRED EQUIPMENT GROUP includes standard equipment

PIO, AUDIO SYSTEM, ENHANCED AUDIO SYSTEM with 7" diagonal color touchscreen, AM/FM stereo with seek-and-scan and digital clock. Additional features for compatible phones include: Bluetooth audio streaming, SiriusXM Radio with customer subscription, Apple CarPlay, Android Auto capable, navigation using Apple CarPlay or Android Auto and Rear Vision Camera. (Port Installed Option) (Includes (UVC) Rear Vision Camera, PIO.).

AXLE, LIMITED SLIP

PIO, BACK UP ALARM (Port Installed Option)

PIO, SEAT BELT COLOR ORANGE, DRIVER AND PASSENGER SEAT (Port Installed Option)

PIO, REAR VISION CAMERA (Port Installed Option),

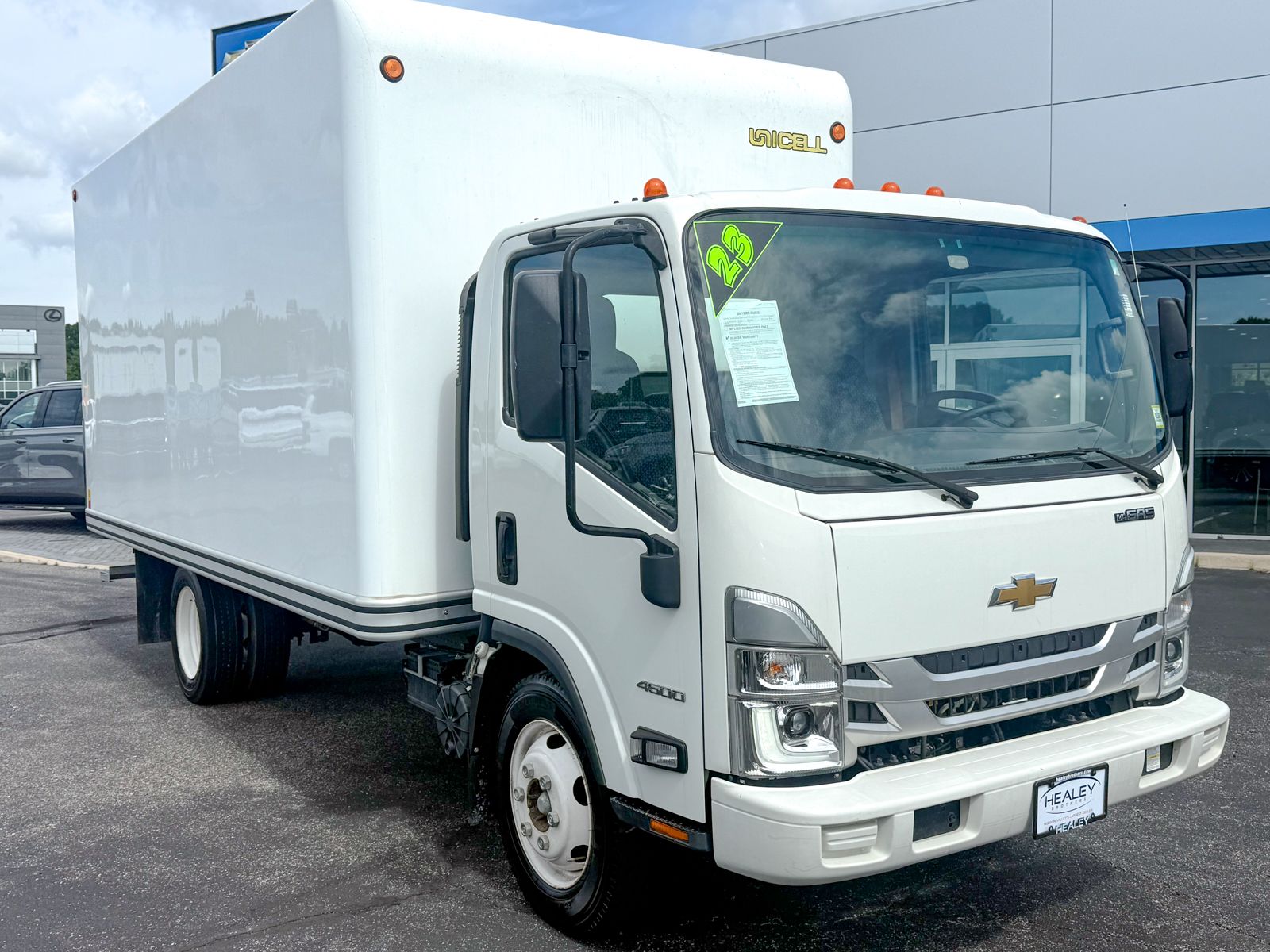

Vehicle Name - Chevrolet 4500 LCF Gas

Body Style - Regular Cab Chassis Cab

Body Code -

Drivetrain - Rear Wheel Drive

Passenger Capacity - 3

Number of Passenger Doors - 2

Gross Axle Wt Rating - Front (lbs) - 6630

Gross Axle Wt Rating - Rear (lbs) - 11020

Curb Weight - Front (lbs) - 3558

Curb Weight - Rear (lbs) - 2115

Gross Vehicle Weight Rating Cap (lbs) - 14500

Gross Combined Wt Rating (lbs) - 20500

Engine Order Code - L8T

Engine Type - Gas V8

Displacement - 6.6L/400

Fuel System - Direct Fuel Injection

SAE Net Horsepower @ RPM - 350 @ 4500

SAE Net Torque @ RPM - 425 @ 3800

Trans Order Code - MYD

Trans Type - 6

Trans Description Cont. - Automatic

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.027

Second Gear Ratio (:1) - 2.364

Third Gear Ratio (:1) - 1.532

Fourth Gear Ratio (:1) - 1.152

Fifth Gear Ratio (:1) - 0.852

Sixth Gear Ratio (:1) - 0.667

Reverse Ratio (:1) - 3.064

Clutch Size (in) -

Trans Power Take Off -

Trans PTO Access -

Transfer Case Model -

Transfer Case Gear Ratio (:1), High -

Transfer Case Gear Ratio (:1), Low -

Transfer Case Power Take Off -

Cold Cranking Amps @ 0? F (Primary) - 750

Cold Cranking Amps @ 0? F (2nd) - 825

Cold Cranking Amps @ 0? F (3rd) -

Maximum Alternator Capacity (amps) - 145

Maximum Alternator Watts - - TBD -

Total Cooling System Capacity (qts) - - TBD -

Engine Oil Cooler - Yes

Frame Type - Ladder-Type C-Section

Sect Modulus Rails Only (in?) - 7.20

Frame RBM - 316800

Frame Strength (lbs) - 44000

Frame Thickness (in) - 8.50 X 2.76 X 0.24

Suspension Type - Front - Semi-Elliptical Multi-Leaf Spring

Suspension Type - Rear - Semi-Elliptical Multi-Leaf Spring

Spring Capacity - Front (lbs) - 6830

Spring Capacity - Rear (lbs) - 12900

Axle Type - Front - I-Beam

Axle Type - Rear - Full-Floating

Axle Capacity - Front (lbs) - 6830

Axle Capacity - Rear (lbs) - 11020

Axle Ratio (:1) - Front -

Axle Ratio (:1) - Rear - 4.30

Shock Absorber Diameter - Front (mm) - 42.0

Shock Absorber Diameter - Rear (mm) - 42.0

Stabilizer Bar Diameter - Front (in) - 1.65

Stabilizer Bar Diameter - Rear (in) -

Front Tire Order Code - 2TC

Rear Tire Order Code - 3TC

Spare Tire Order Code -

Front Tire Size - 225/70R19.5

Rear Tire Size - 225/70R19.5

Spare Tire Size -

Front Tire Capacity (lbs) - 6630

Rear Tire Capacity (lbs) - 12460

Spare Tire Capacity (lbs) -

Revolutions/Mile @ 45 mph - Front (Rev/Mile) - 643

Revolutions/Mile @ 45 mph - Rear (Rev/Mile) - 643

Revolutions/Mile @ 45 mph - Spare (Rev/Mile) -

Front Wheel Size (in) - 19.5 x 6.0

Rear Wheel Size (in) - 19.5 x 6.0

Spare Wheel Size (in) -

Front Wheel Offset (mm) - 127

Rear Wheel Offset (mm) - 127

Spare Wheel Offset (mm) -

# of Bolt Holes - Front - 6

# of Bolt Holes - Rear - 6

# of Bolt Holes - Spare -

Front Wheel Material - Steel

Rear Wheel Material - Steel

Spare Wheel Material -

Steering Type - Pwr

Steering Ratio (:1), On Center - 18.8 - 20.9

Steering Ratio (:1), At Lock - 18.8 - 20.9

Turning Diameter - Curb to Curb (ft) - 45.3

Turning Diameter - Wall to Wall (ft) - 50.3

Brake Type - Pwr

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) -

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) -

Front Brake Rotor Diam x Thickness (in) - 11.5 x - TBD -

Rear Brake Rotor Diam x Thickness (in) -

Drum - Front (Yes or ) -

Front Drum Diam x Width (in) -

Drum - Rear (Yes or ) - Yes

Rear Drum Diam x Width (in) - 12.6 x 3.94

Fuel Tank Capacity, Approx (gal) - 38.6

Aux Fuel Tank Capacity, Approx (gal) -

Fuel Tank Location - Frame Rail

Aux Fuel Tank Location -

Front Head Room (in) - 38.40

Front Leg Room (in) - 29.50

Front Shoulder Room (in) - 70.70

Front Hip Room (in) - 67.70

Wheelbase (in) - 150.0

Length, Overall (in) - 241.5

Width, Max w/o mirrors (in) - 81.3

Height, Overall (in) - 90.9

Overhang, Front (in) - 48.4

Overhang, Rear w/o bumper (in) - 43.1

Front Bumper to Back of Cab (in) - 70.9

Cab to Axle (in) - 127.5

Cab to End of Frame (in) - 170.6

Ground to Top of Load Floor (in) -

Ground to Top of Frame (in) - 33.0

Frame Width, Rear (in) - 33.5

Ground Clearance, Front (in) - 8.3

Ground Clearance, Rear (in) - 8.3

Front Frame Rating - - TBD -

Seventh Gear Ratio (:1) -

Eighth Gear Ratio (:1) -

Ninth Gear Ratio (:1) -

Tenth Gear Ratio (:1) -

Eleventh Gear Ratio (:1) -

Twelfth Gear Ratio (:1) -

Thirteenth Gear Ratio (:1) -

Fourteenth Gear Ratio (:1) -

Fifteenth Gear Ratio (:1) -

Sixteenth Gear Ratio (:1) -

Seventeenth Gear Ratio (:1) -

Eighteenth Gear Ratio (:1) -

Nineteenth Gear Ratio (:1) -

Twentieth Gear Ratio (:1) -

Second Reverse Gear Ratio (:1) -

Third Reverse Gear Ratio (:1) -

Fourth Reverse Gear Ratio (:1) -

Fifth Reverse Gear Ratio (:1) -

Sixth Reverse Gear Ratio (:1) -

Body Weight (uncalculated) (lbs) - - TBD -

Driver Weight (lbs) - - TBD -

Axle Ratio - Low Rear (:1) -

Driver Ratio - - TBD -

Torque @ Clutch Engage (ft-lbs) - - TBD -

Cab to Body (in) - - TBD -

Grade (%) - - TBD -

Frontal Area (ft?) - - TBD -

Governed Engine Speed (RPM) -

Torque Converter -

Front Wheel Description Cont. -

Rear Wheel Description Cont. -

Spare Wheel Description Cont. -

Static Loaded Radius (in) - - TBD -

Front Bolt Pattern - 6 Hole JIS 8.75"

Rear Bolt Pattern - 6 Hole JIS 8.75"

Spare Bolt Pattern -

Number Of Tires Front - 2

Number Of Tires Rear - 4

Number Of Tires Spare -

Transmission Manufacturer -

Transmission Type -

Engine Series - GMPT

Body Length Default Value (ft) - - TBD -

Engine Horsepower At RPM - 350 @ 4500

Engine Horsepower At Max Speed RPM - - TBD -

Max Speed For Gradeability - - TBD -

Model Group - 4500

Vehicle Segment - Chassis

Vehicle Type - Standard Cab

Engine Displacement Units - 6.6

Engine Camshaft - OHV

Engine Block Type - iron

Engine Cylinder Count - 8

Engine Valve Count - 2

Country of Origin - United States N-Gas, F-Series and N-EV Incomplete vehicles
